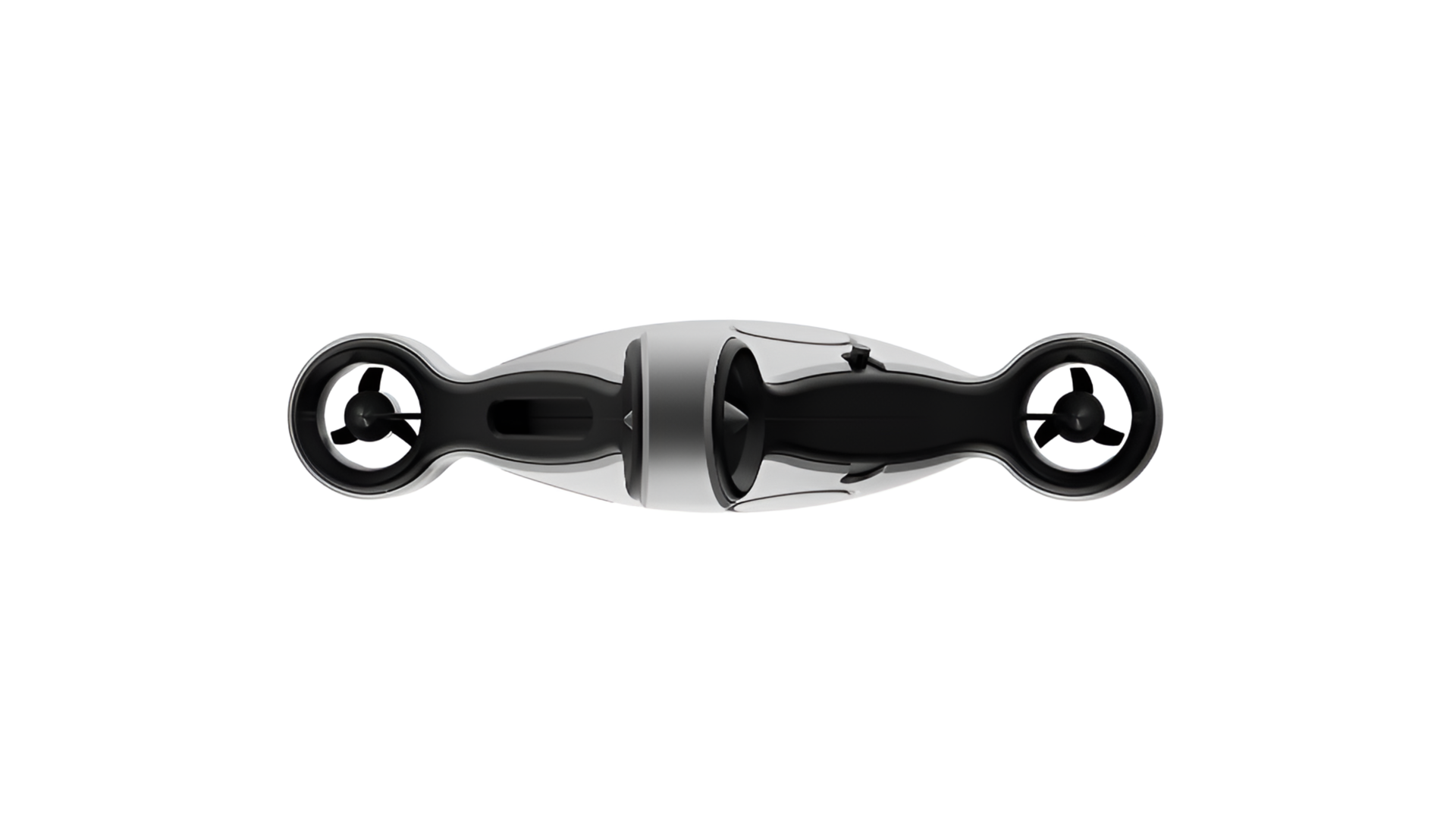

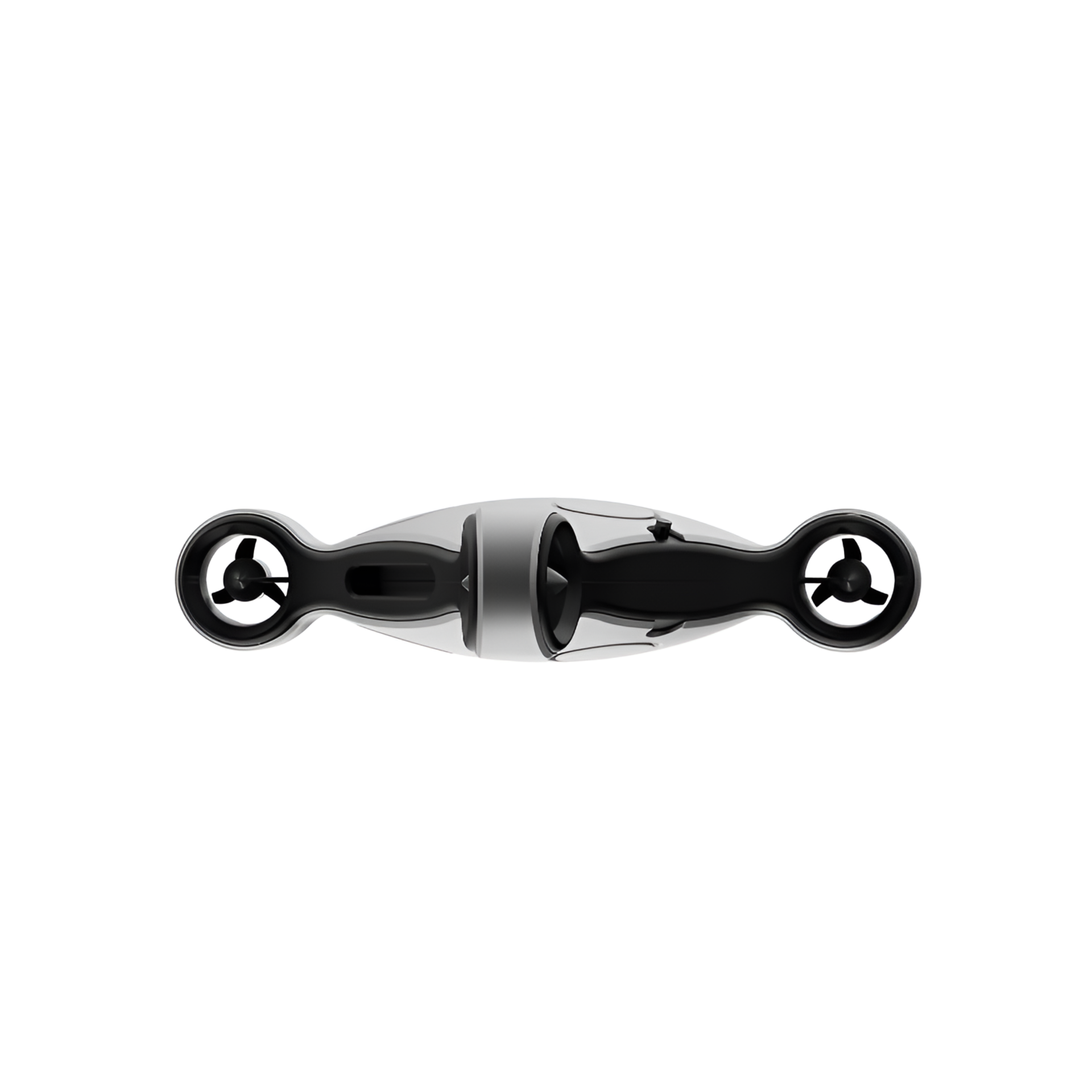

This UNDERWATER DRONE is an industrial underwater drone that GOTH Design designed for HNY in 2019 to inspect the underside of ships. Lowered along the side of a vessel, the drone moves left and right and films the hull with its on-board camera.

For this function, the drone must be able to move horizontally not only forward and backward but also sideways. Stable and efficient filming also requires underwater hovering and up-and-down rotation of the camera.

The previous form looked stable and had strong character, with a large central body protected by wing-like structures. However, the gap between the body and the wings made it easy for the drone to catch on obstacles or trap debris, and the irregularly shaped camera seal refracted the light travelling to and from the camera.

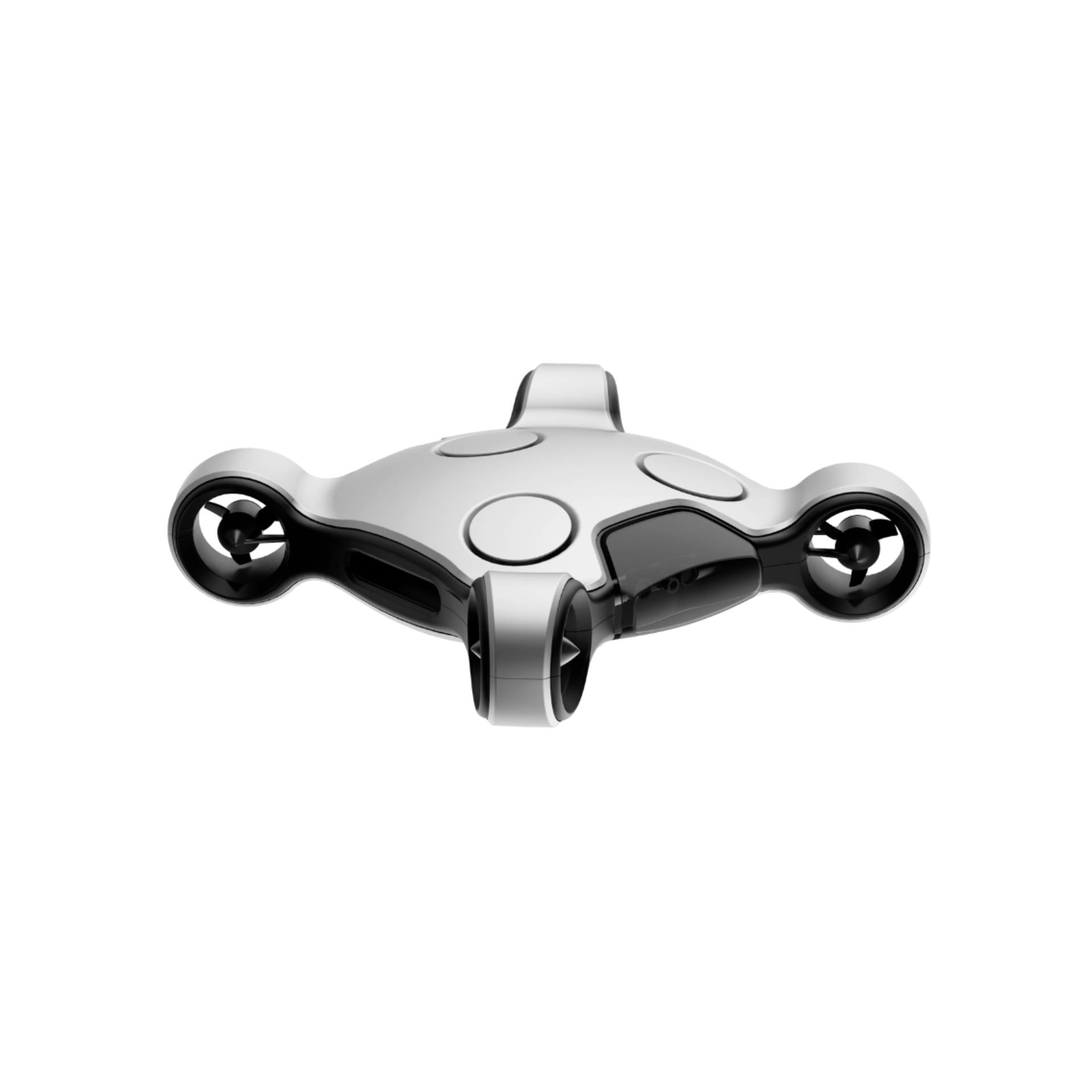

GOTH Design developed a design that solves these problems, validating it through prototyping and a study of propeller configuration.

GOTH Design is a product design firm that combines physical UX and engineering, taking responsibility from problem discovery through mass production.

고스디자인(GOTH Design)이 HNY와 진행한 선박 하부 점검용 산업용 수중드론의 제품디자인입니다(2019). 좌우 수평 이동과 수중 호버링, 카메라 상하 회전이 필요한 기능 조건에서 기존 형태의 바디와 날개 사이 틈에 장애물·이물질이 끼는 문제와 불규칙한 카메라 실링의 빛 굴절 문제를 발견하고, 프로토타입과 프로펠러 배치 연구로 이를 해결하는 디자인을 진행했습니다.

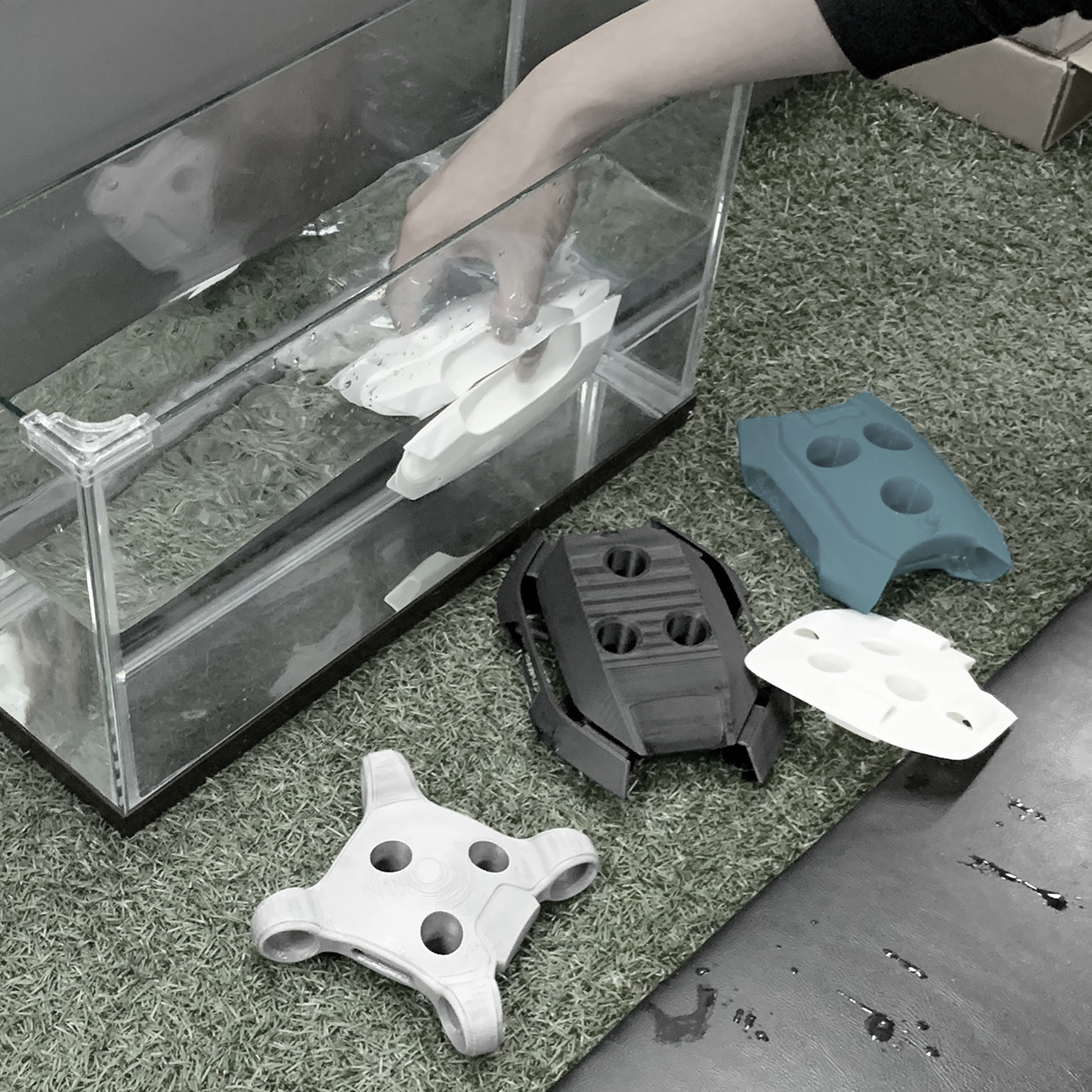

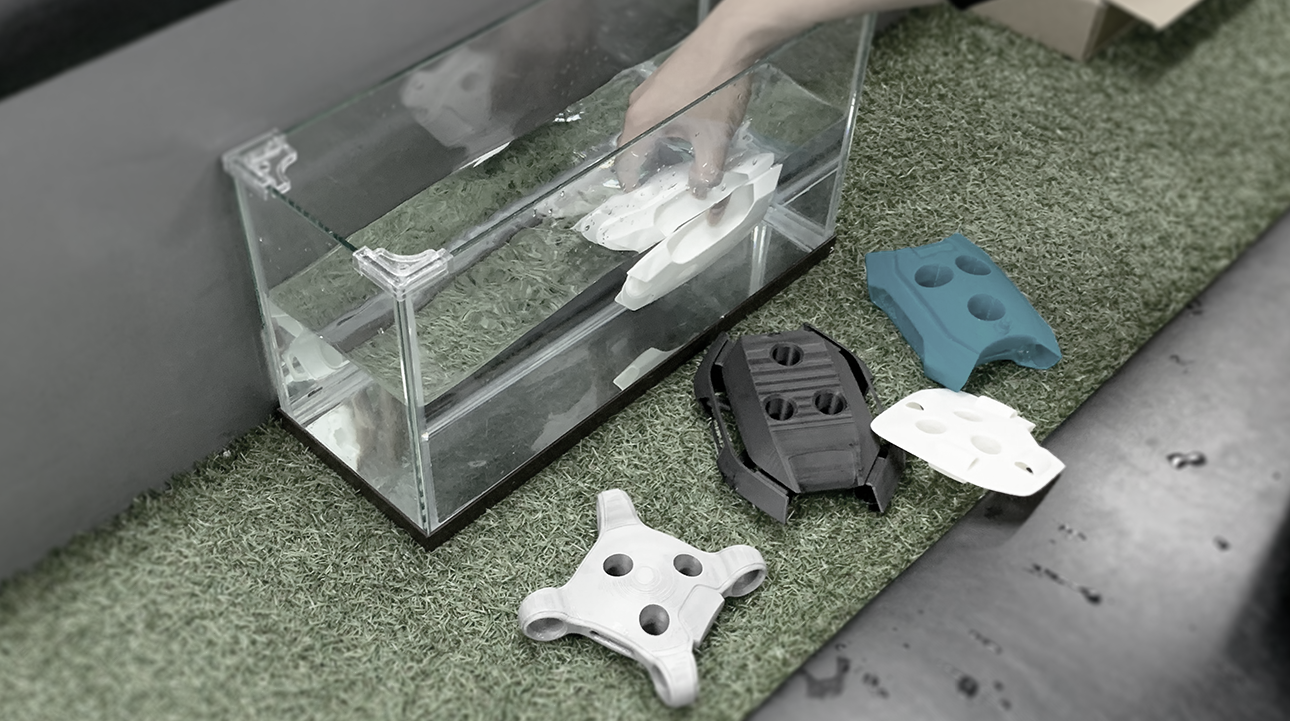

Prototyping

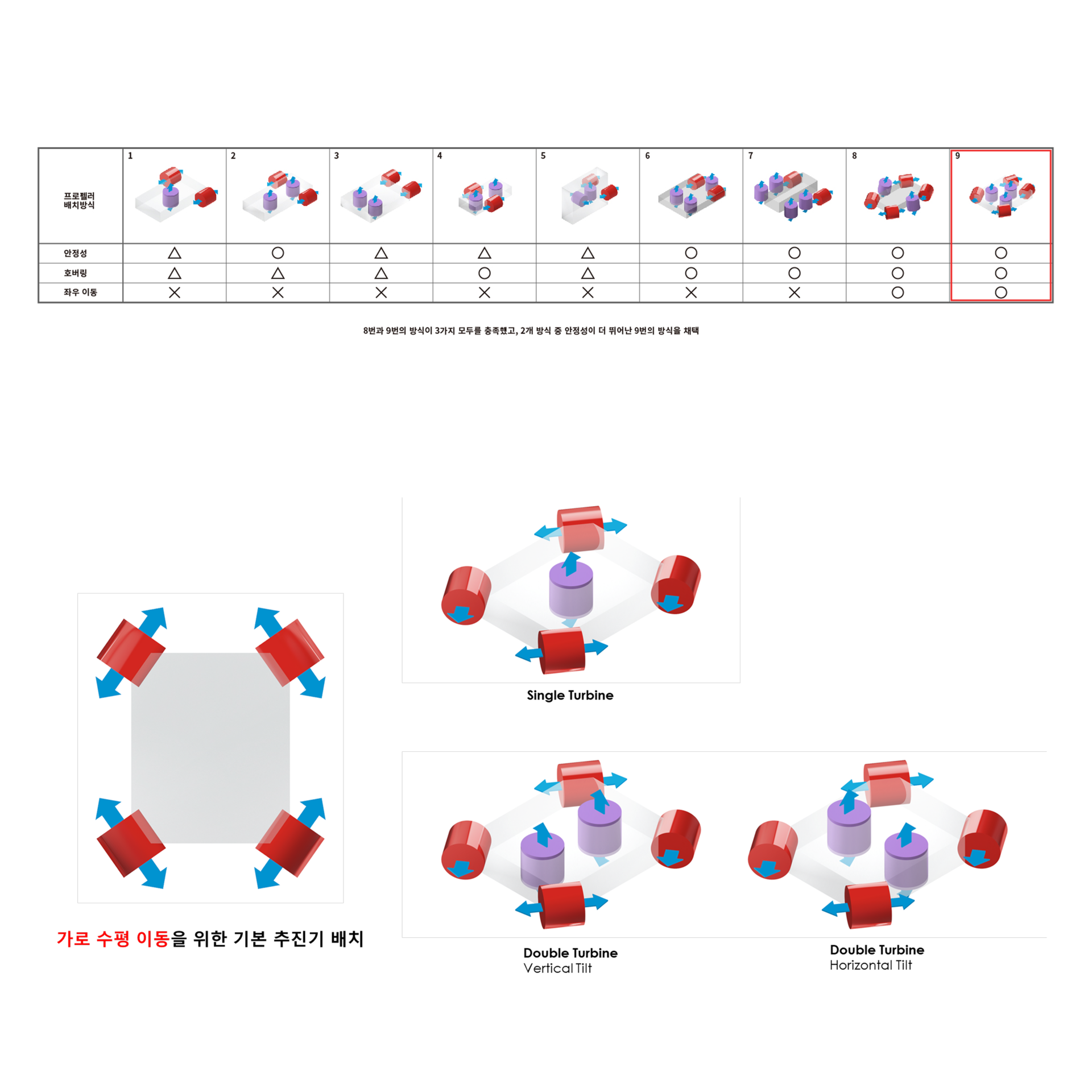

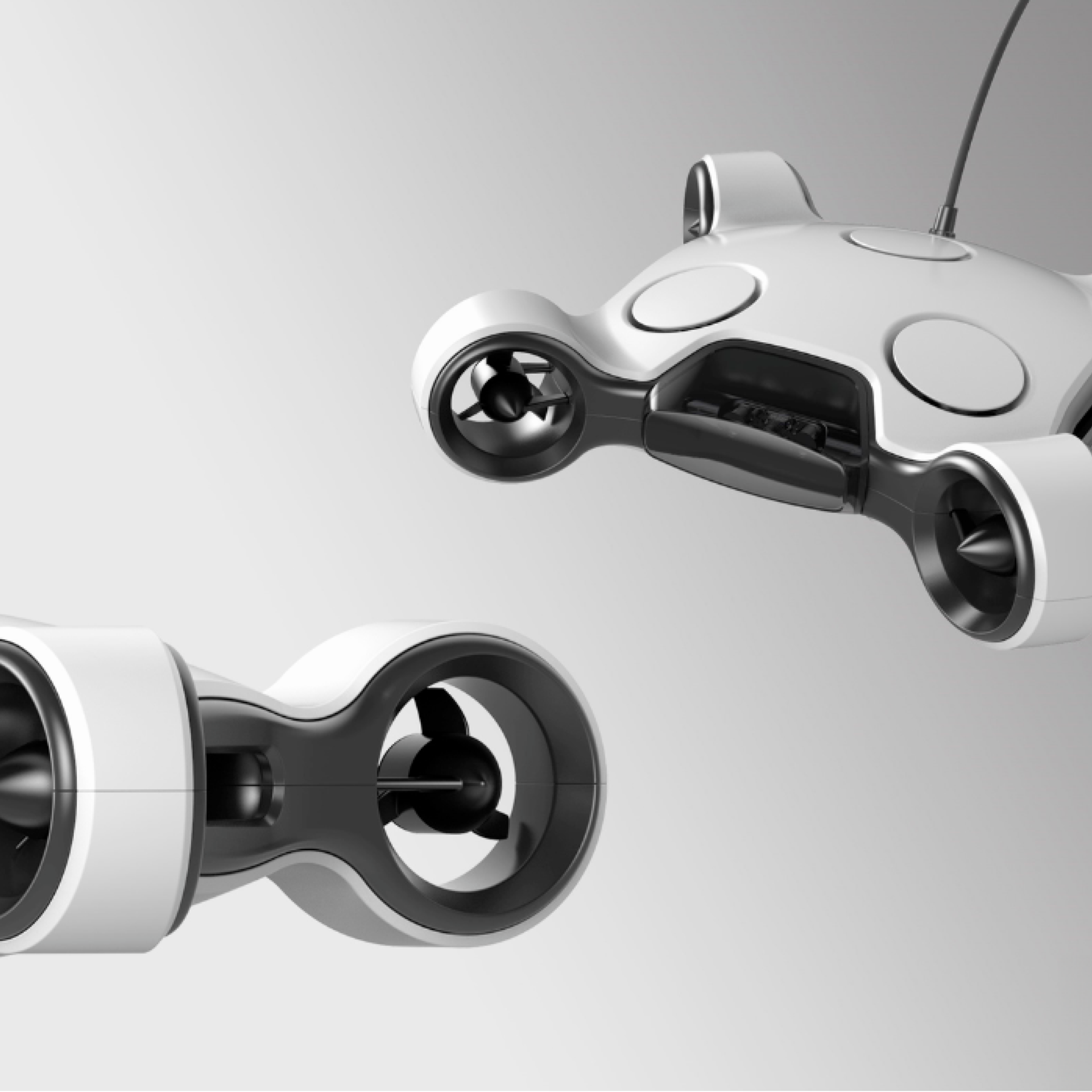

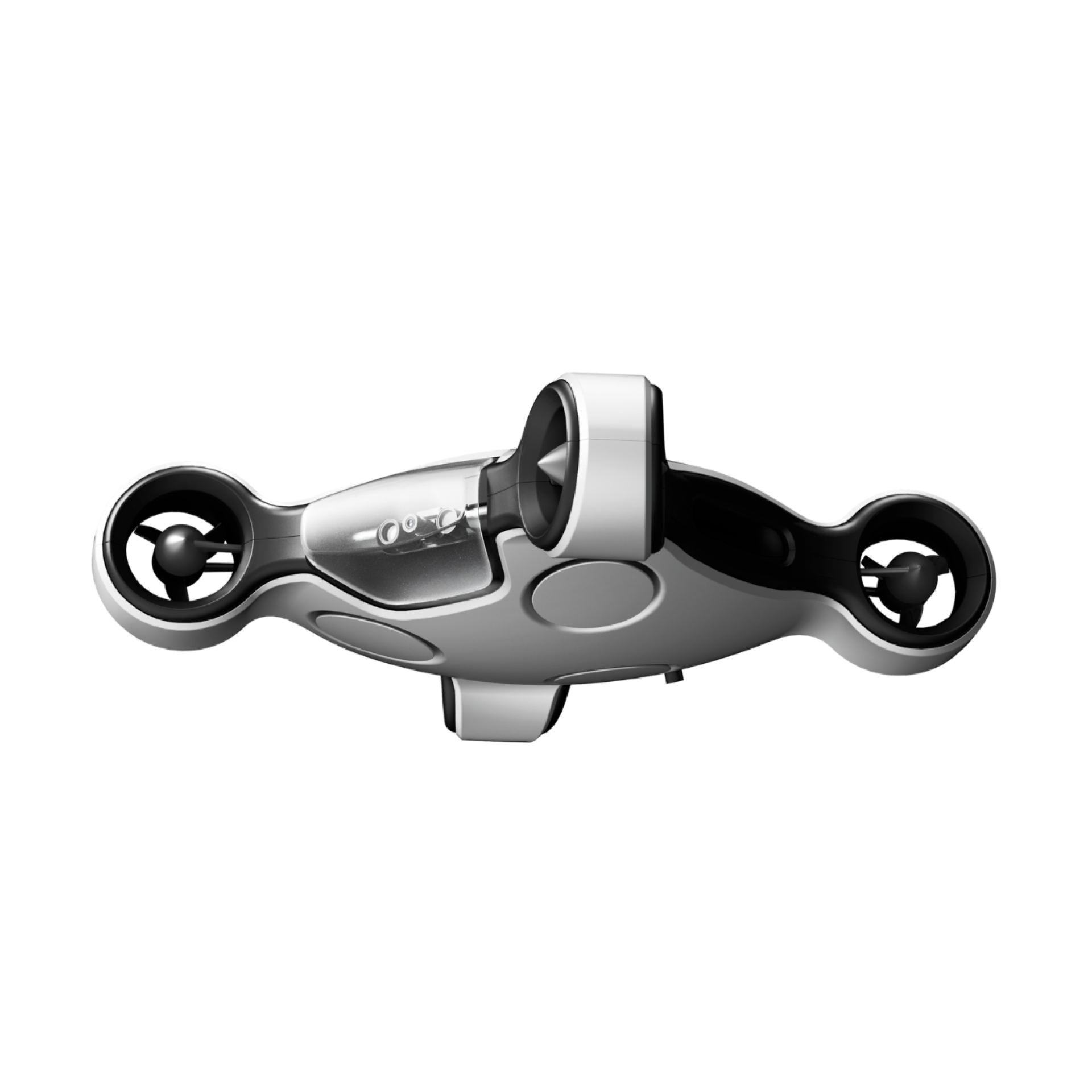

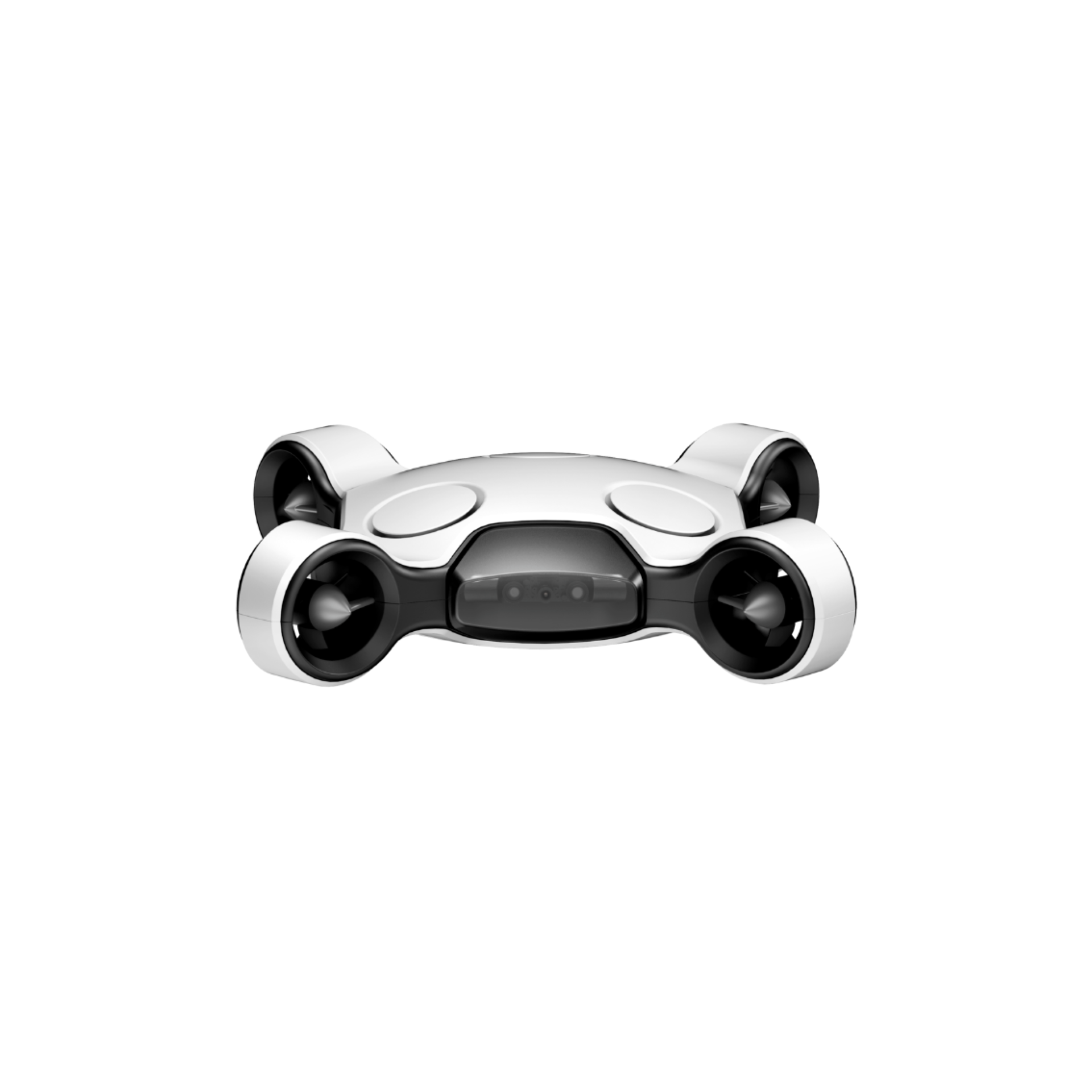

Propeller Configuration
